removal of paloli head stock bearings
Topic Started: Oct 15 2012, 10:02 PM (787 Views)
sullivj
Member Avatar
Viscount
[ *  *  *  * ]
Firstly, apologies to anyone who knows how to do this. I'm not trying to preach, just help someone who, like me, didn't really have a clue how to do this. Set aside a couple of hours and that should cover it.

Should anyone need to replace their head bearings in the future, here's my 'how to for my 604 supermoto 2000 (grey frame)'

Jack up he bike, so that the front wheel is off the ground.

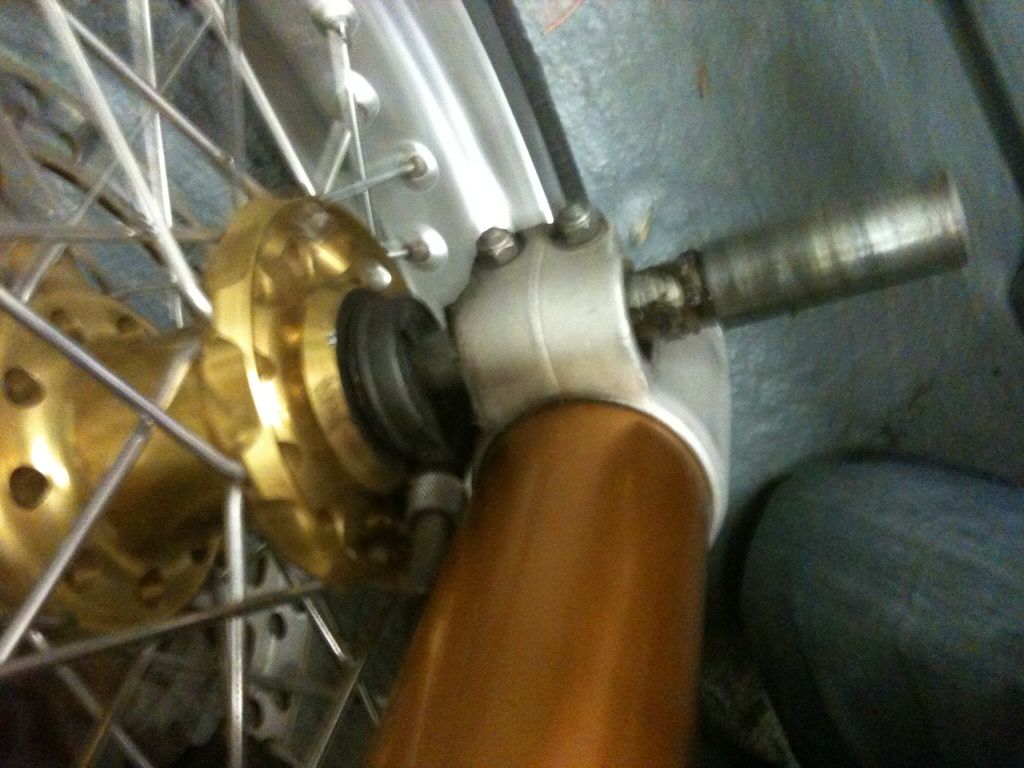

Remove the front wheel by taking out the spindle from the RHS (as you sit on the bike). You will need to undo the speedo drive cable before you can take the wheel out completely.
Posted Image

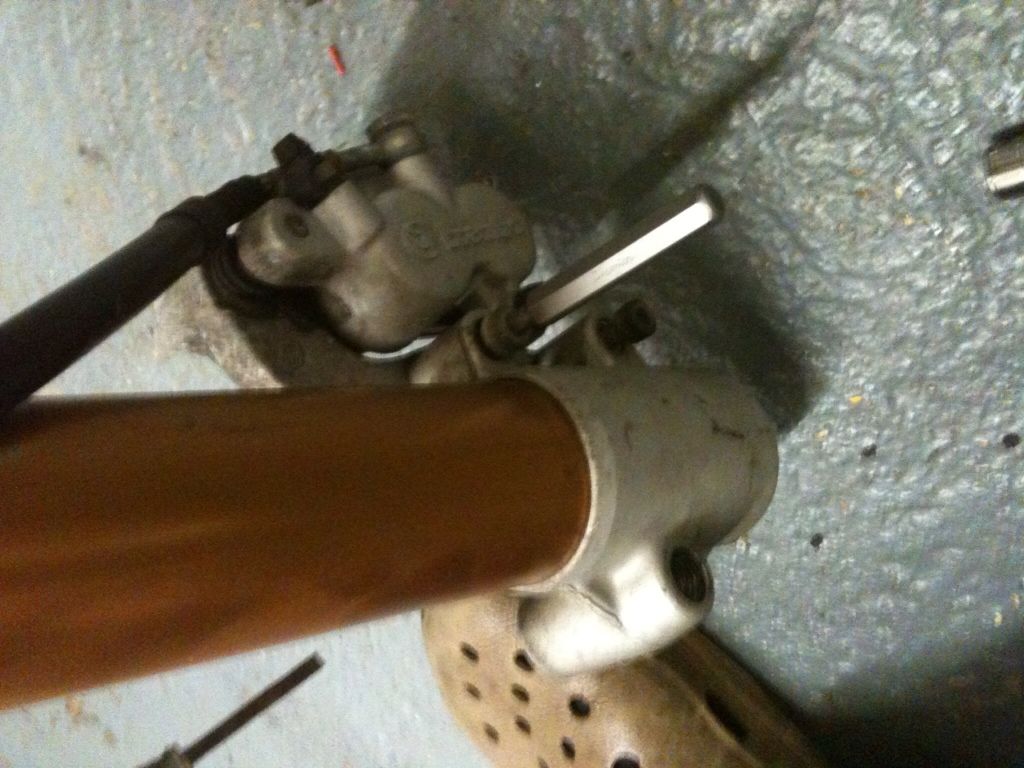

Remove the two bolts that hold on the brake caliper (shown with hex driver in place)
Posted Image

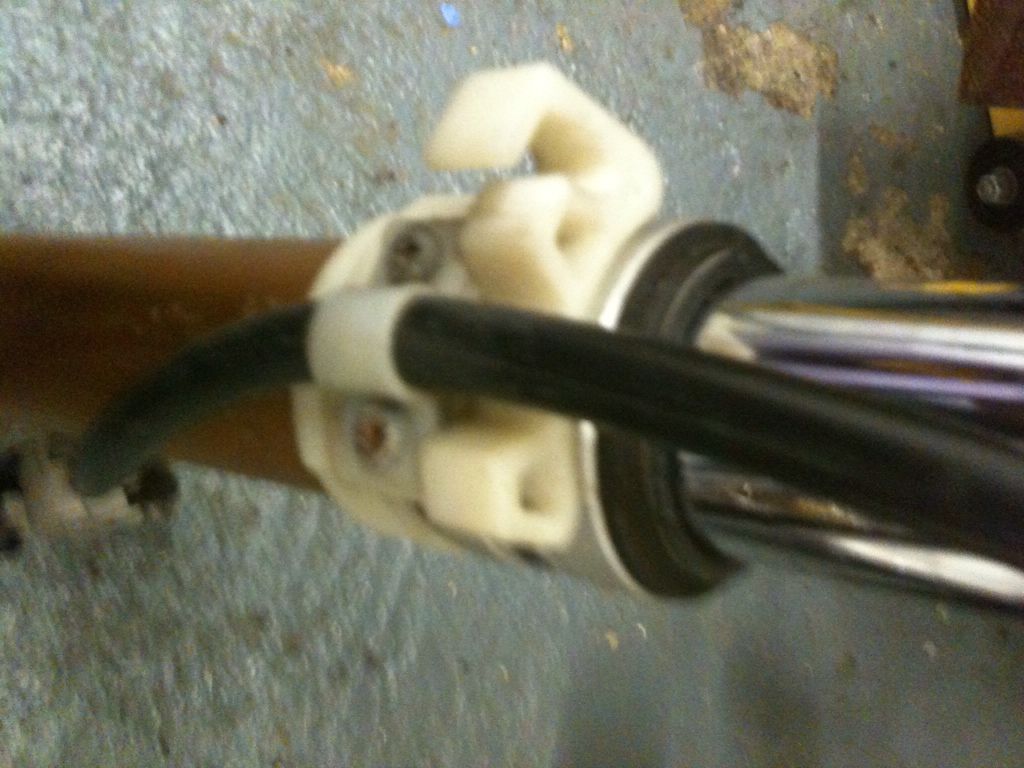

Remove the brake line clip and take off the fork protectors.
Posted Image
Remove the headlight and if you need to, number up the connections so you can plug them back in later

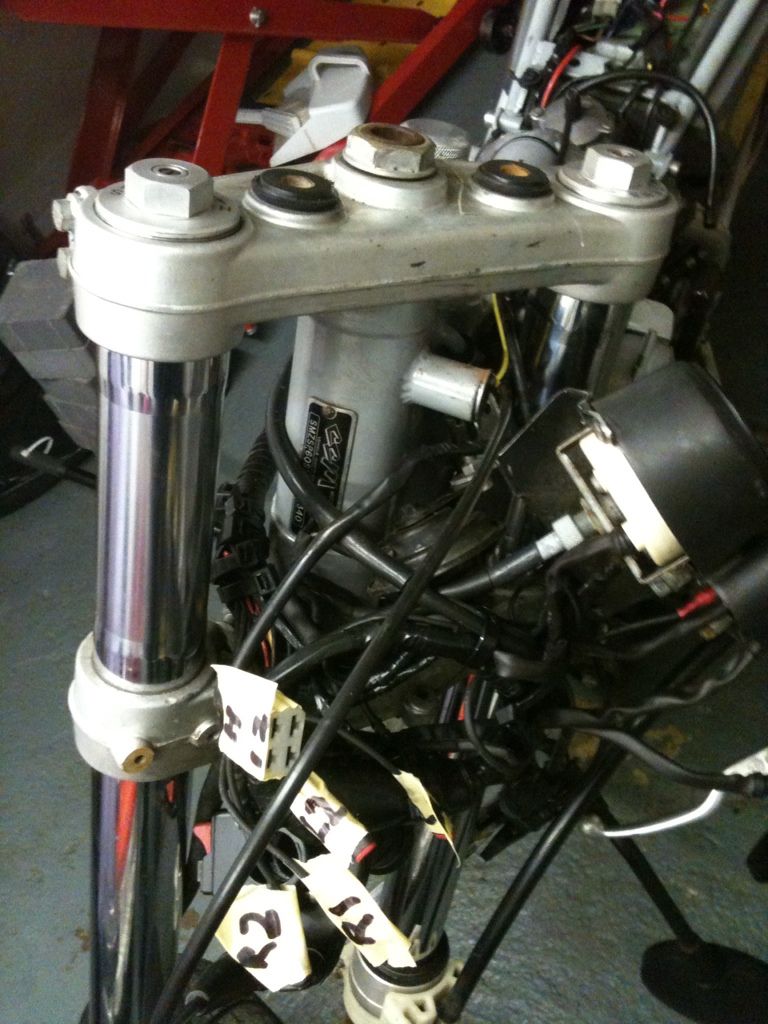

Remove the mudguard, handlebar controls, handlebar and headlight, labeling and connections that you'll forget about later:
Posted Image

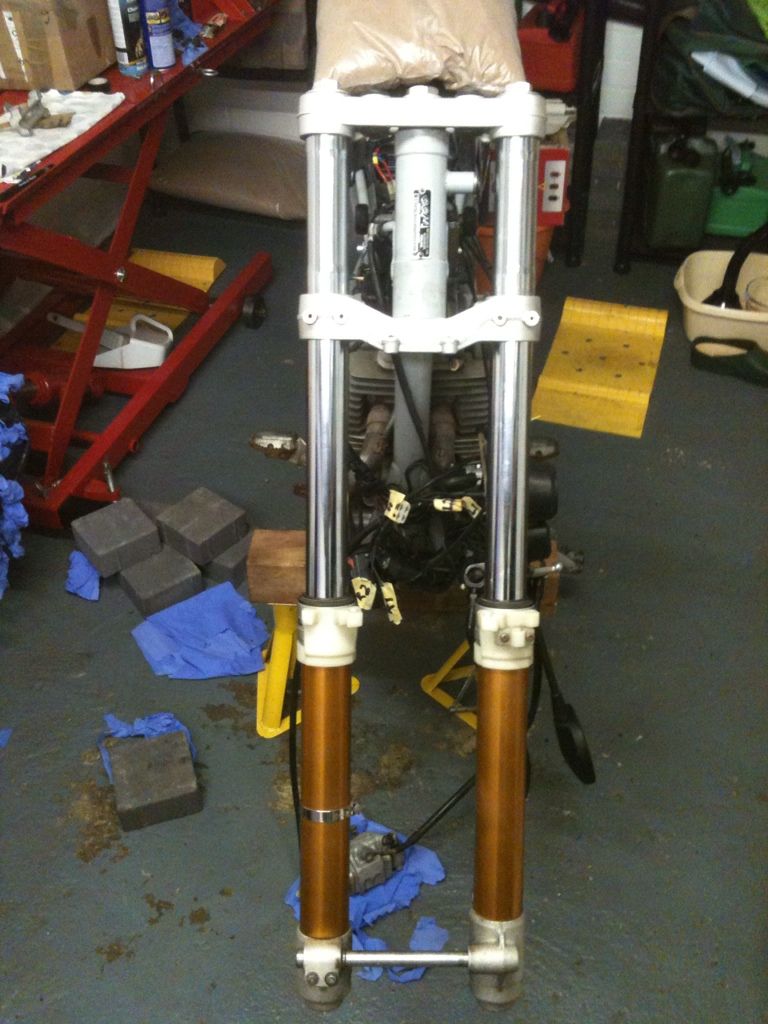

Then undo the four nuts on sides (2 each side) of the top yoke and four nuts on the side of the bottom yoke, that will allow the forks to slide down and (if you've jacked the bike enough), drop out of the bottom of the yokes.

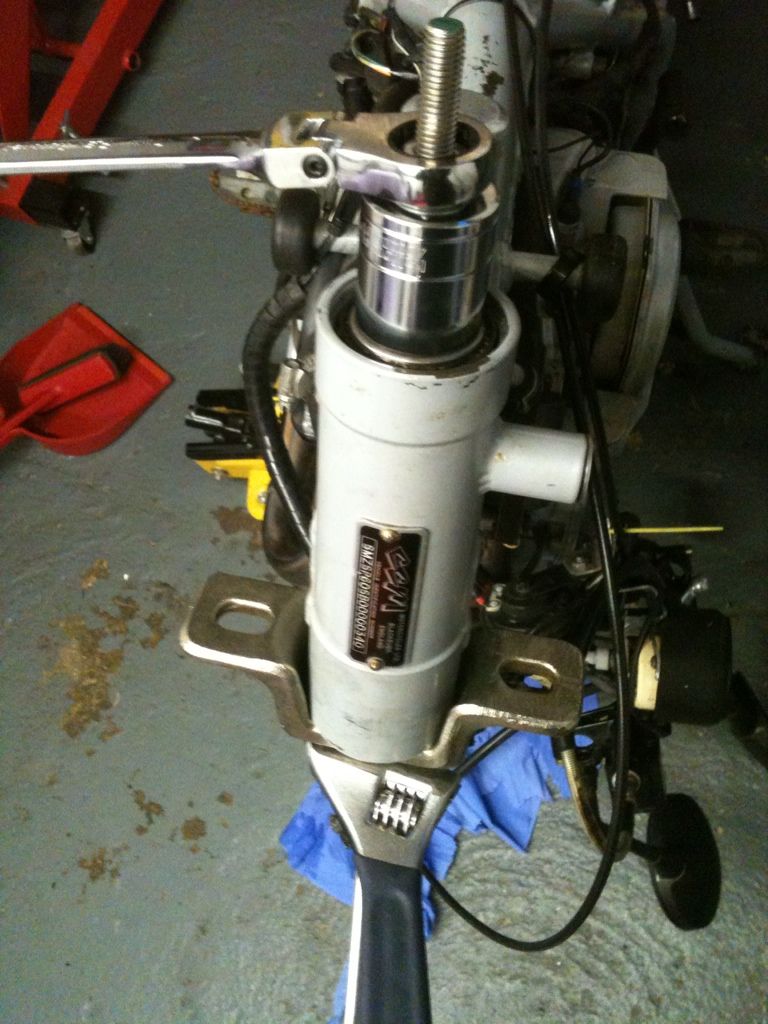

Undo the central 30mm central nut, which will allow you to remove the top yoke:
Posted Image

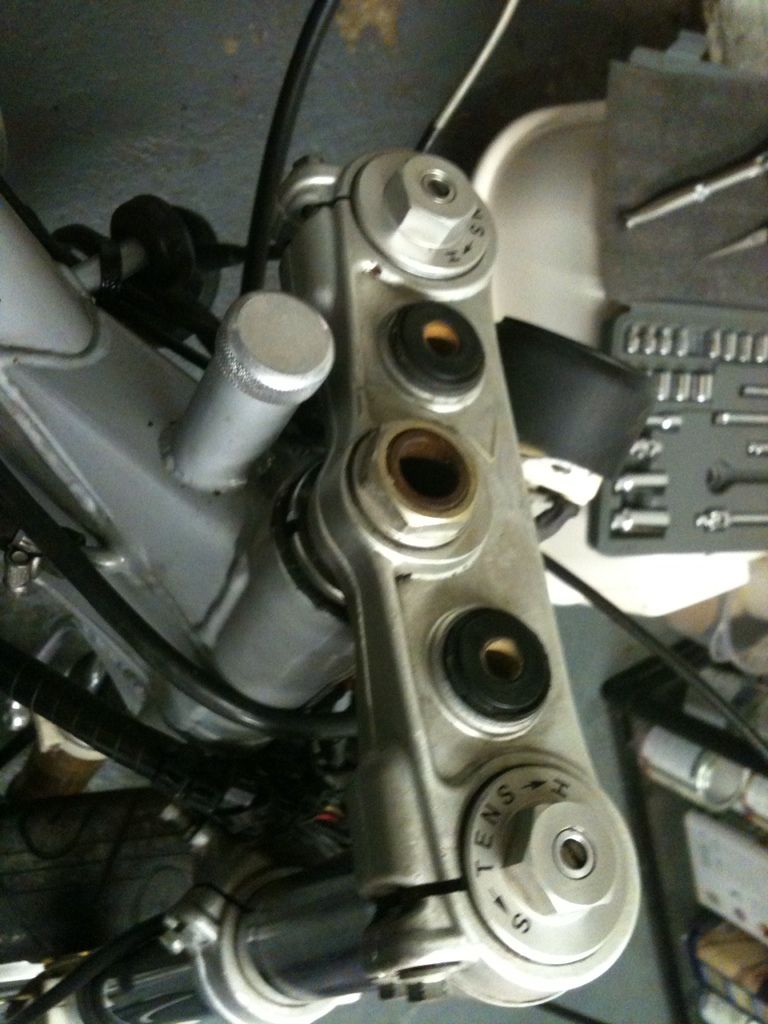

Undo the notched nut with a C ring spanner (if you have one), which will expose the bearing and allow the bottom yoke to drop out.

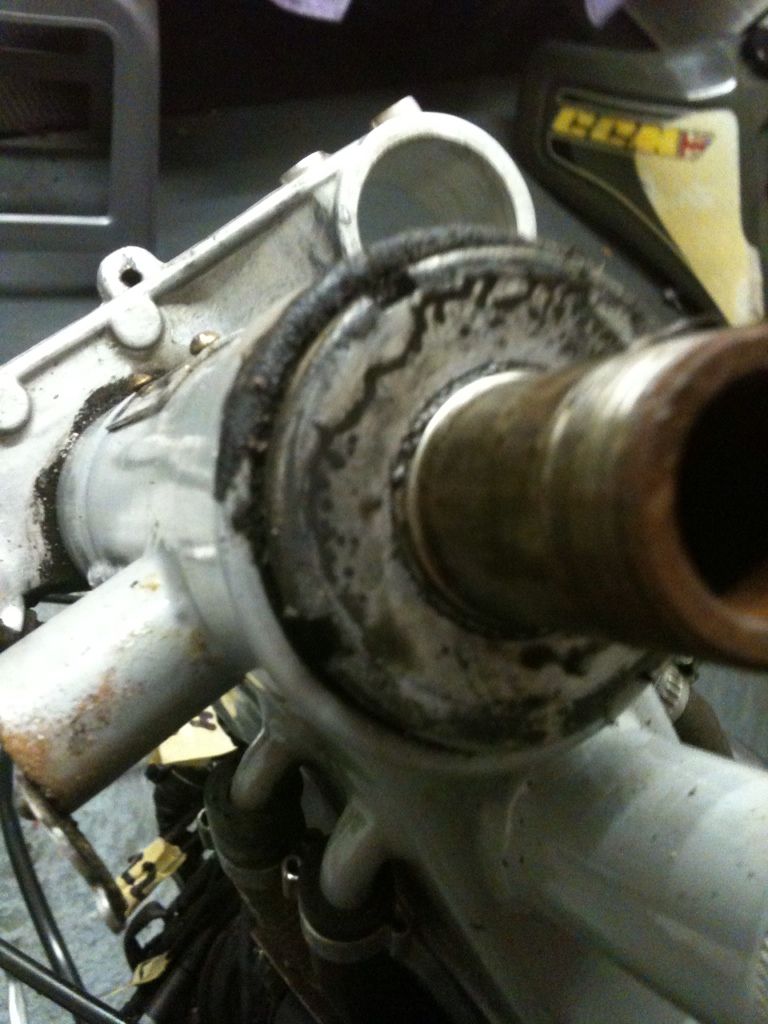

Posted Image

Lift out the rollers from the top:
Posted Image

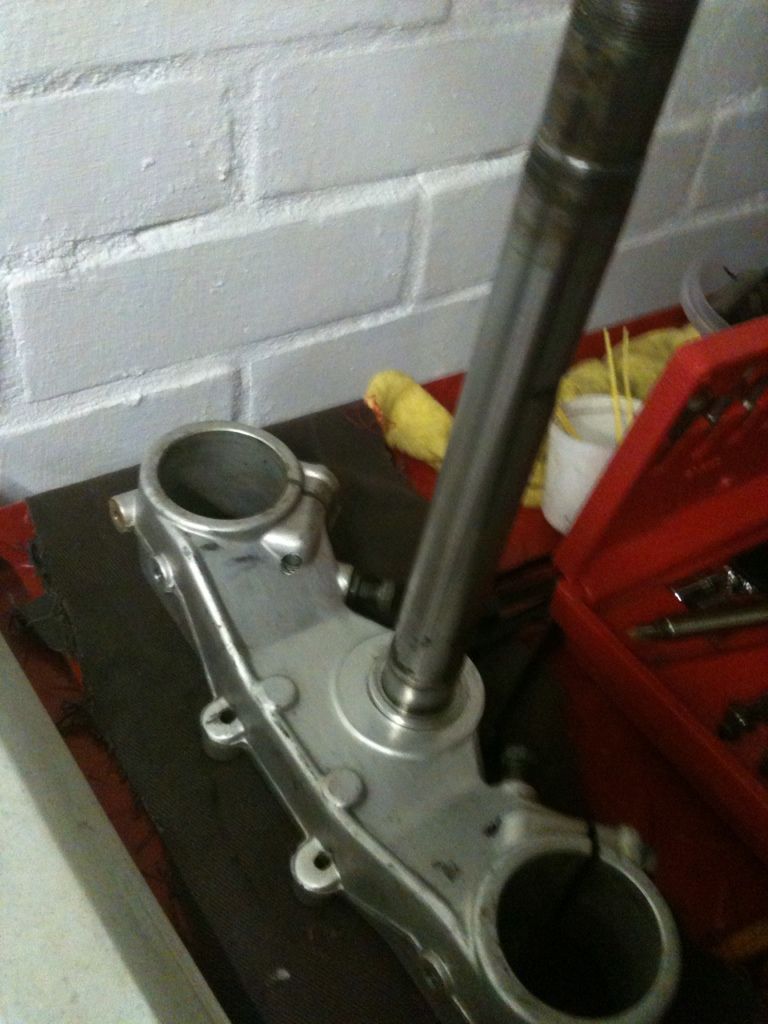

And the bottom ones will be stuck the shaft.
Posted Image

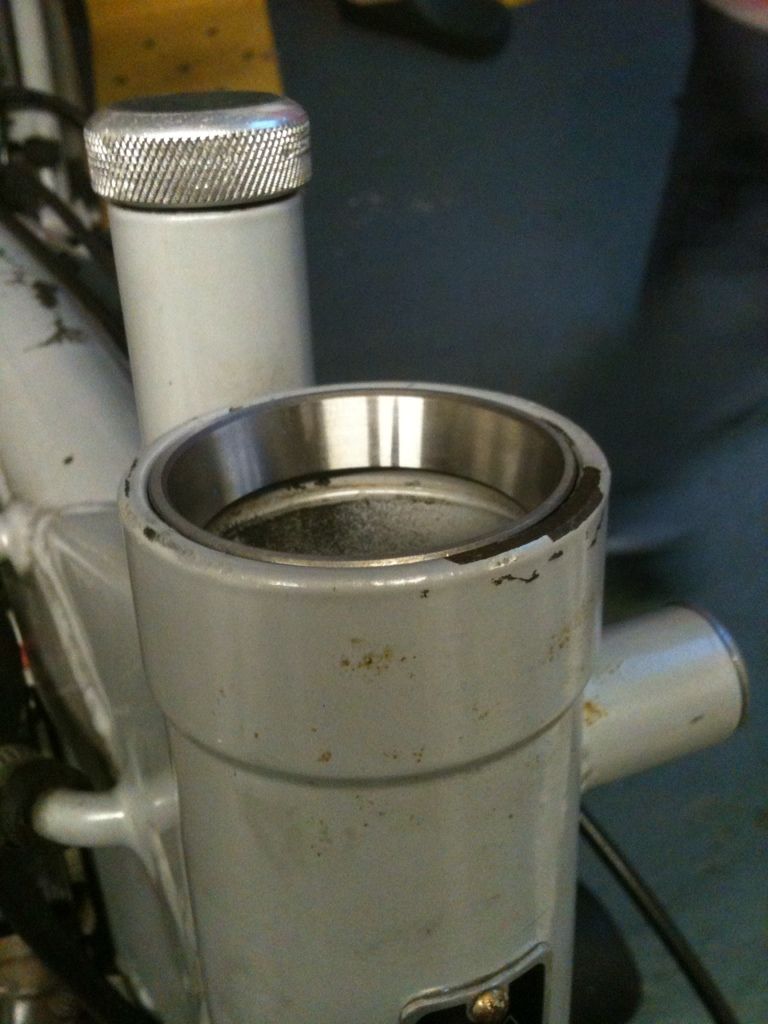

You then need to remove the outer bearing casings from inside the frame. Ideally, you'll have a puller for this. I didn't, so ended up taping them with a long metal rod from the other end of the frame. Make sure you tap them out evenly and don't get them 'wedged'.
Posted Image

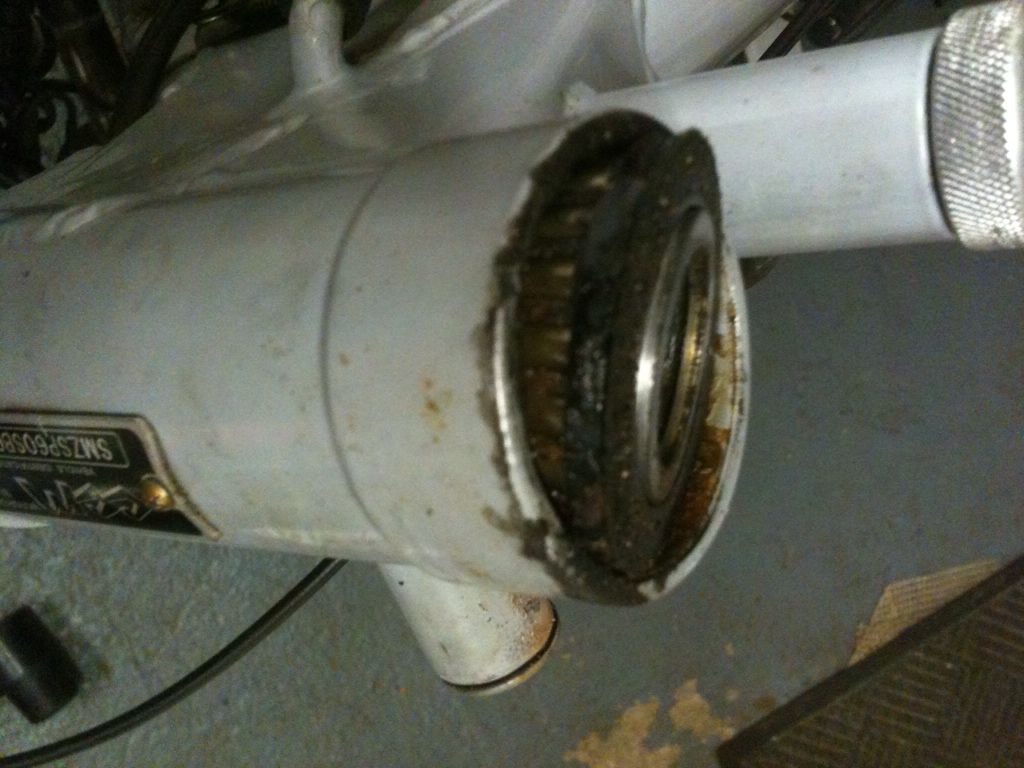

Eventually, you'll get one out of the top and one out of the bottom
Posted Image

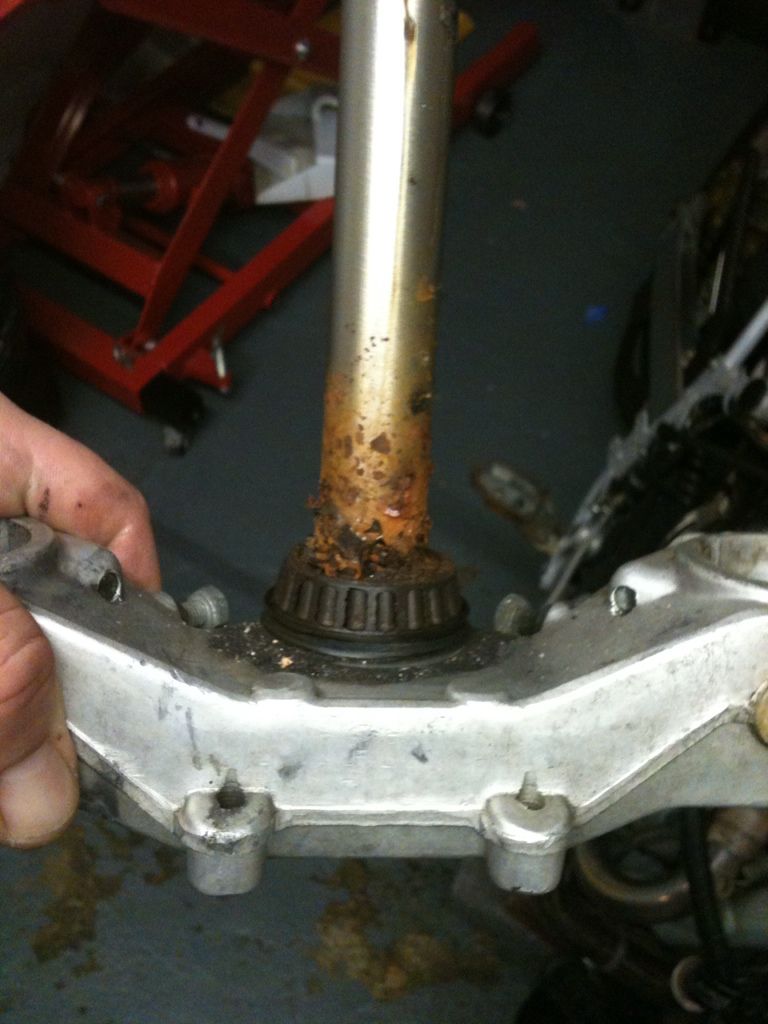

Then you'll need to remove the rollers and outer casing from the bottom of the shaft. This wasn't easy as mine was rusted on. In the end, I cut off the rollers and cage with a dremel and then cut a very small slit in the uper ring of the casing. This enabled be to get a screwdriver into the slot and tap the bearing to rotate it on the shaft. That broke the rust seal, so I was then able to tap the casing, gently up the shaft to remove it.

When I'd got it off, I cleaned up the yoke and shaft in readiness for the new bearings:
Posted Image
Offline Profile Quote Post Goto Top

sullivj
Member Avatar
Viscount
[ *  *  *  * ]
Just back in from the garage, I've made some good progress.

I used Stevo's excellent idea to set the top casing in line with the frame:

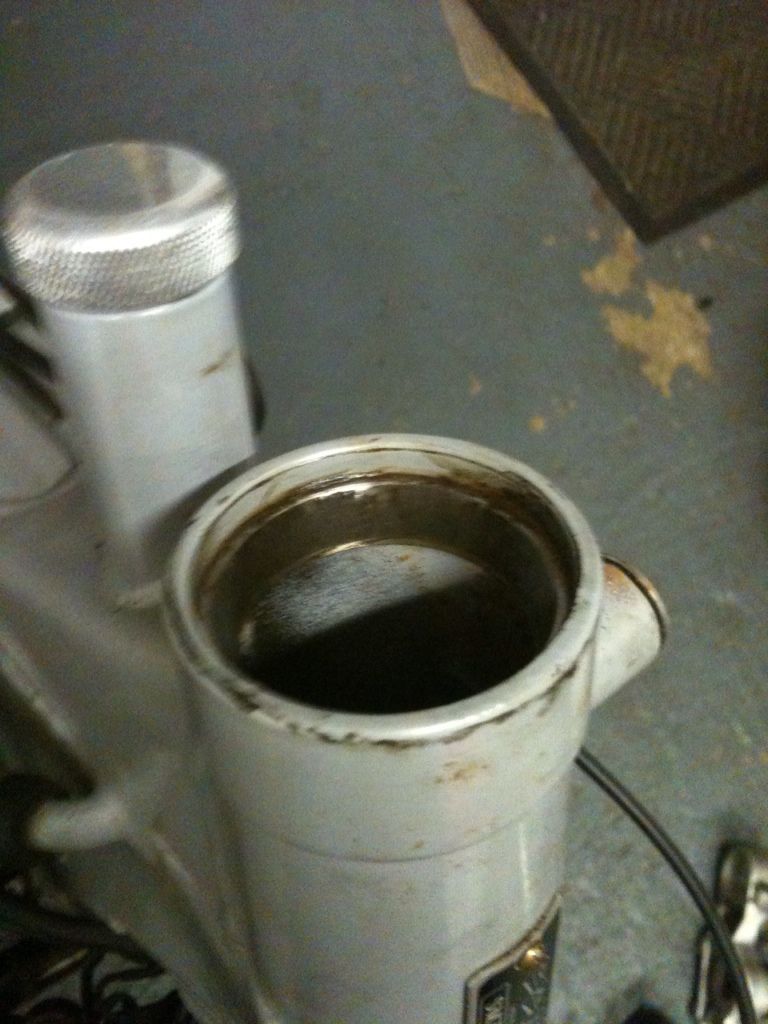

Posted Image

You can see here, that they need to go down a bit further:

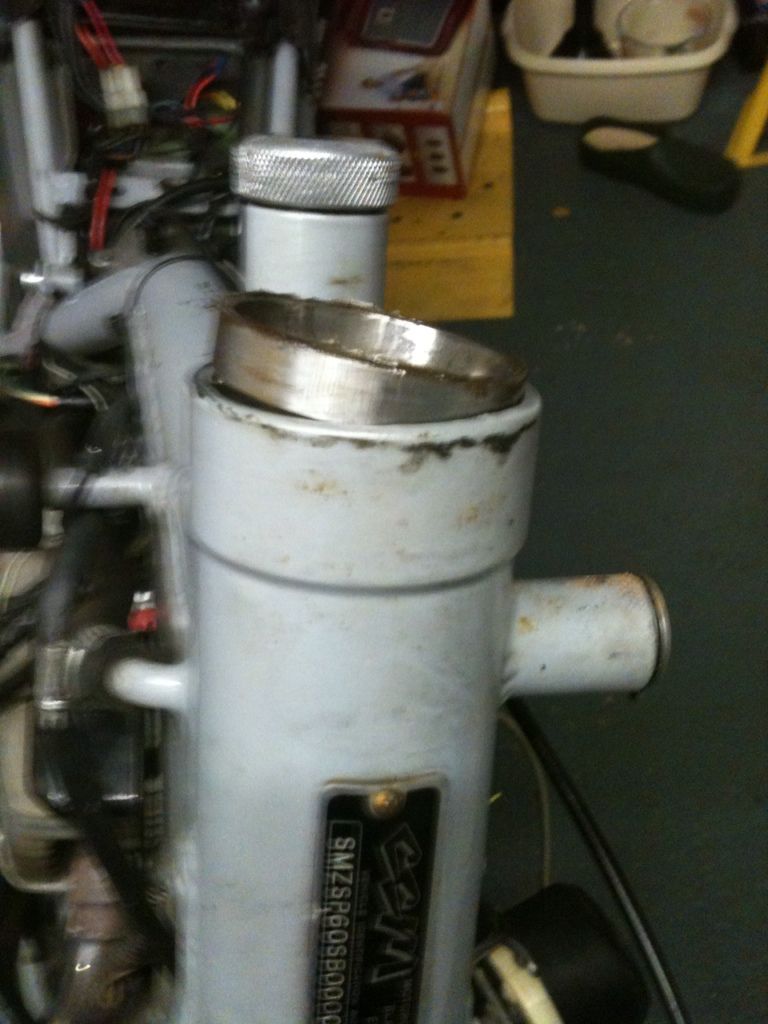

Posted Image

So, I re-rigged it slightly, put the old rollers in place and drove it home before checking the edge with a digital caliper to make sure it was properly seated.

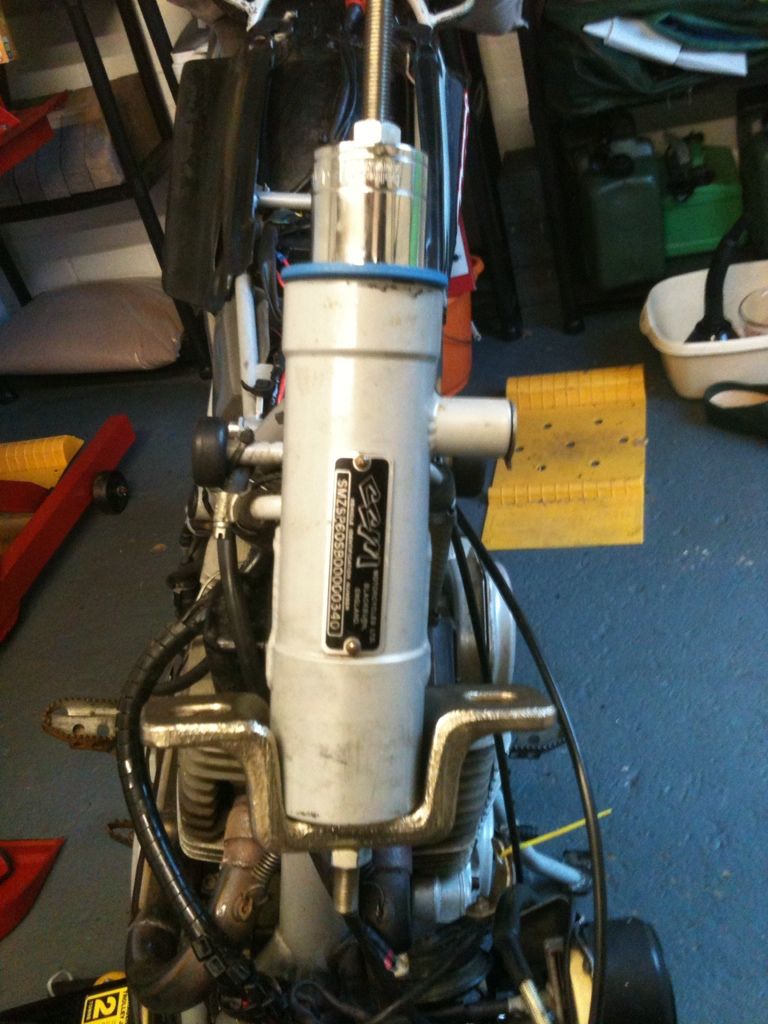

Posted Image

Then I did the same for the bottom casing.

Next, I drifted the new bearing onto the shaft with a brass drift and small hammer and made sure that it was sat properly on the bottom yoke.

Then it's just a case of starting to put it all back together. Dont forget the washer that sits on top of the top bearing. Of course, you'll need to grease the bearings and shaft too.

I inserting the wheel spindle to make sure it's all lined up and true before its tightened up:
Posted Image

For future reference, the ones I took out, were stamped:

Rubber L44643 RS
Bearing 446431

The new ones are stamped as
Rubber L44643
Bearing 44600LA

So, as I thought would be the case, I could have got two of these bearings for £8.50 each, when I paid £57.55 for a pair from CCM.... Oh well :rant:

http://www.thebearingcompany.co.uk/product...id_product=5498

Or £2.25 each from here:
http://www.akbearings.co.uk/product.asp?P_ID=768

:rant:
:rant:
:rant:

The new tyre has arrived, so that will go for fitting tomorrow and the re-test is booked for Monday...!
Offline Profile Quote Post Goto Top

tommysdad
Earl
[ *  *  *  *  * ]
I found it easier to cut through the old bearing race with an angle grinder and use this to gently tap the new ones in place. This video shows how and has few workarounds and good tips.

https://www.youtube.com/watch?v=_Ozfh93CvBs
Posted Image

I'm a man with a fork in a world of soup
Offline Profile Quote Post Goto Top
