| 644 swingarm bearings, another way | |
|---|---|
| Tweet Topic Started: Mar 15 2012, 08:29 PM (7,060 Views) | |
| Rob 110 | Mar 15 2012, 08:29 PM Post #1 |
|
God
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]()
|
sorry no pics, but info if your swinger bearings are loose: the standard 0-rings and 20mm wide needle rollers don't last long as they seal poorly, take on water and wear out, plus are quite expensive i replaced mine with phos-bronze Oilite bushes for about £5 pair simplybearings.co.uk They are self lubricating and corrosion resistant and therefore low maintenance. 1 pair: AM2026-20 Oilite Plain Bush 20x26x20mm 1 pair: AM2026-15 Oilite Plain Bush 20x26x15mm lose the 0-rings and fit both so 35mm width easily fitted with a large vice or large bolt/washers/nuts to wind them in been in my R30 a couple of years, +6k miles no probs hth |
|
CLICK HERE TO DONATE TO THE FORUM DIRTY R30 644 '03 TPS done, gubbins gone, GSXR can, 150 main, 27.5 pilot, needle 2nd position, K&N no lid FILTHY 404DS '04: 152 main, 70 pilot air jet, 38 pilot, emm needle 4th clip, Quill T3. Sold :( HUSKY FE501 missile
| |
![]() |
|
| madasabicycle | Mar 15 2012, 09:32 PM Post #2 |
|
Baron
![]() ![]() ![]() ![]() ![]()
|
:P Mine are ordered! £17.35 for the 4 delivered. |
CCM 644 DS All the usual Mods
| |
![]() |
|
| R30Paul | Mar 16 2012, 03:30 PM Post #3 |
|
Marquess
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]()
|
So thats it... Just 2 lots of Oilite bushes per side in the swinger, Why no O rings, not enough room? Do you still use the Journals or do the Oilite ID match the Spindle OD? Any reason why you didn't use top hat / flange bushes for the inside pair? is there no gap to make up? Interesting... Nice, neat, cheap and low maintenance idea... From the Haines site, there are 2 lost of journal available... £18.36 ea... - 41mm for Rotax and 644 up to '04... - 38mm for 644 '04 onwards... Post how you go madasabicycle, what years are ya bike? - and does that fit in with Haynes' blurb... |
![]() |
|
| Rob 110 | Mar 16 2012, 07:03 PM Post #4 |
|
God
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]()
|
no room for 0-rings and no room for mud/crud, unlike needle rollers the 0-rings just don't seal the needle rollers you use the standard journals, otherwise the bushes would be acting on the spindle, so increased wear (i did try it on the 404 but didn't last long) the journal is effectively a moving part so wear is eliminated don't use flange ones as the journal and nylon washer take up the space all bikes used to be made like this ;) unfortuanately ccm used needle rollers without an efficient way of keeping moisture/crud out :rolleyes: thats why Japs use needle rollers with a grease nipple and proper oil seal, which works :) |
|
CLICK HERE TO DONATE TO THE FORUM DIRTY R30 644 '03 TPS done, gubbins gone, GSXR can, 150 main, 27.5 pilot, needle 2nd position, K&N no lid FILTHY 404DS '04: 152 main, 70 pilot air jet, 38 pilot, emm needle 4th clip, Quill T3. Sold :( HUSKY FE501 missile
| |
![]() |
|
| madasabicycle | Mar 16 2012, 09:03 PM Post #5 |
|
Baron
![]() ![]() ![]() ![]() ![]()
|
I'll let you know how it goes! I'l take some pictures and add them here. |
CCM 644 DS All the usual Mods
| |
![]() |
|
| jonny h | Mar 17 2012, 01:18 AM Post #6 |
|
this is how i roll!
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]()
|
did this recently when i changed to my DS swingarm and works a treat, shame your original write up is gone rob. i wonder if LB managed to get it though? |
![]() ,C26 604e, ![]() | |
![]() |
|
| Rob 110 | Mar 17 2012, 07:15 PM Post #7 |
|
God
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]()
|
dunno where the pics went, not on my photobucket and kind find em on PC :( on the old site its not accessible as it was in the 'memebers only' section and as we can't log in :angry: |
|
CLICK HERE TO DONATE TO THE FORUM DIRTY R30 644 '03 TPS done, gubbins gone, GSXR can, 150 main, 27.5 pilot, needle 2nd position, K&N no lid FILTHY 404DS '04: 152 main, 70 pilot air jet, 38 pilot, emm needle 4th clip, Quill T3. Sold :( HUSKY FE501 missile
| |
![]() |
|
| Monty | Mar 20 2012, 04:51 PM Post #8 |
![]()
Charlie Big Banana's
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]()
|
I have it, but in adobe, so cant upload, can email it to who ever needs it, just send me your email address |
|
If it aint sharp I can play with it My Utube Channel, lots of bike vids here. Subscribe if you likehttp://www.youtube.com/user/choppermark?feature=watch
| |
![]() |
|
| madasabicycle | May 7 2012, 11:23 AM Post #9 |
|
Baron
![]() ![]() ![]() ![]() ![]()
|

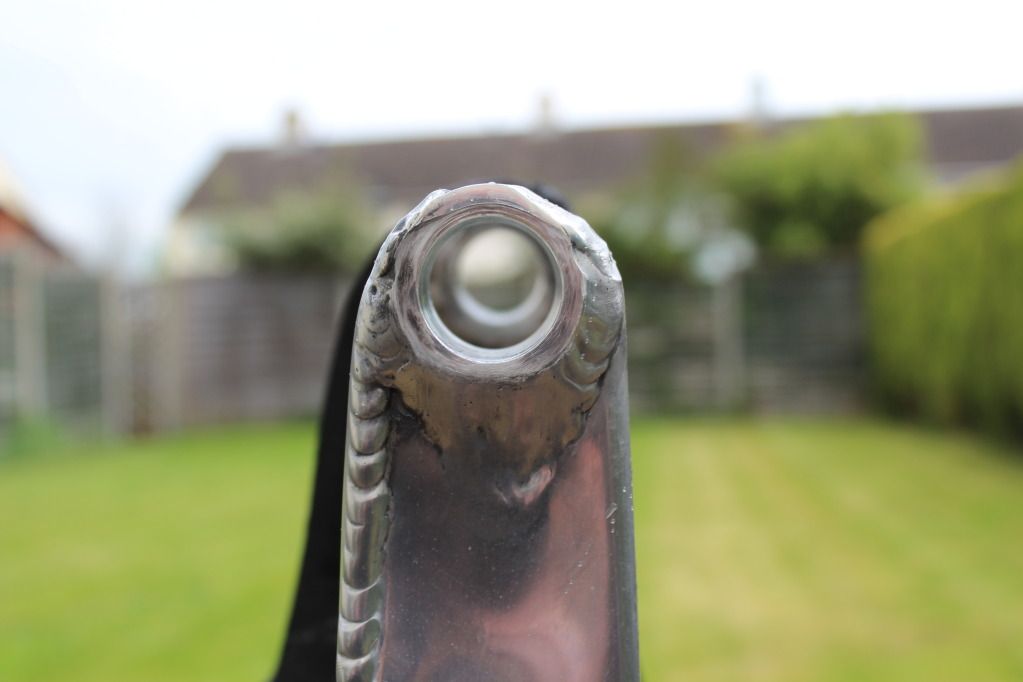

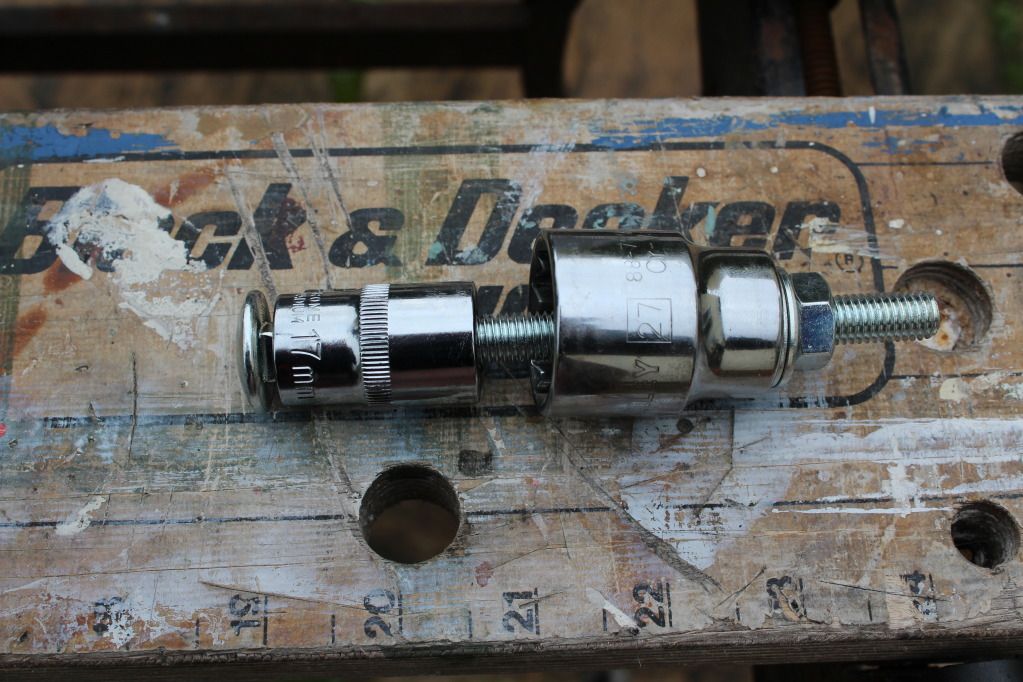

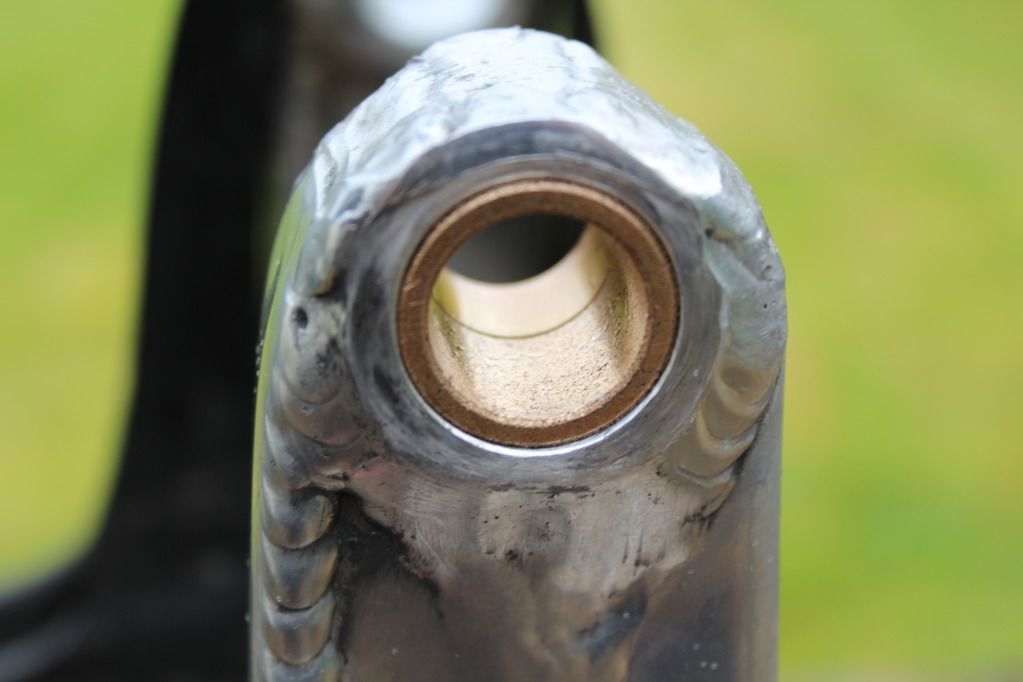

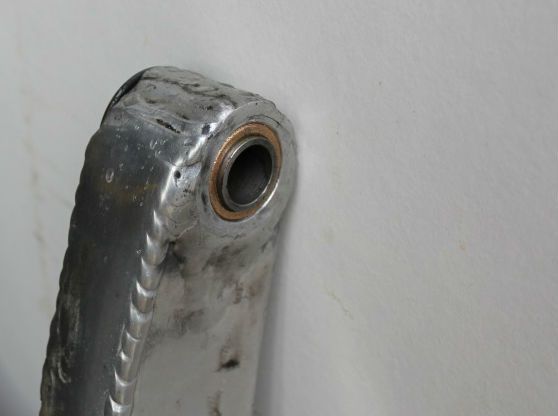

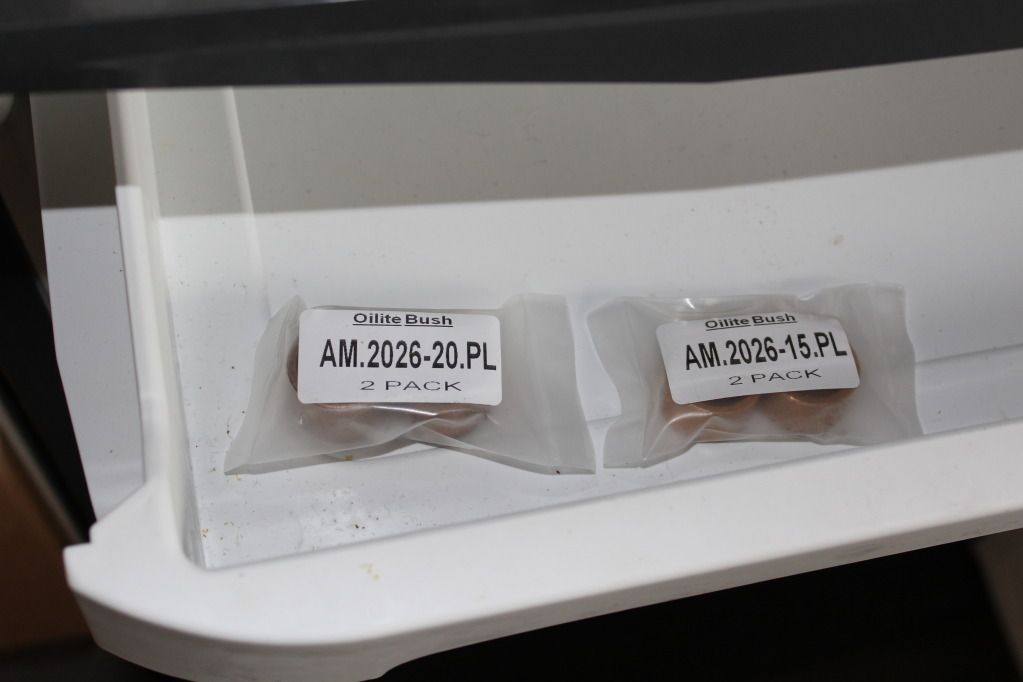

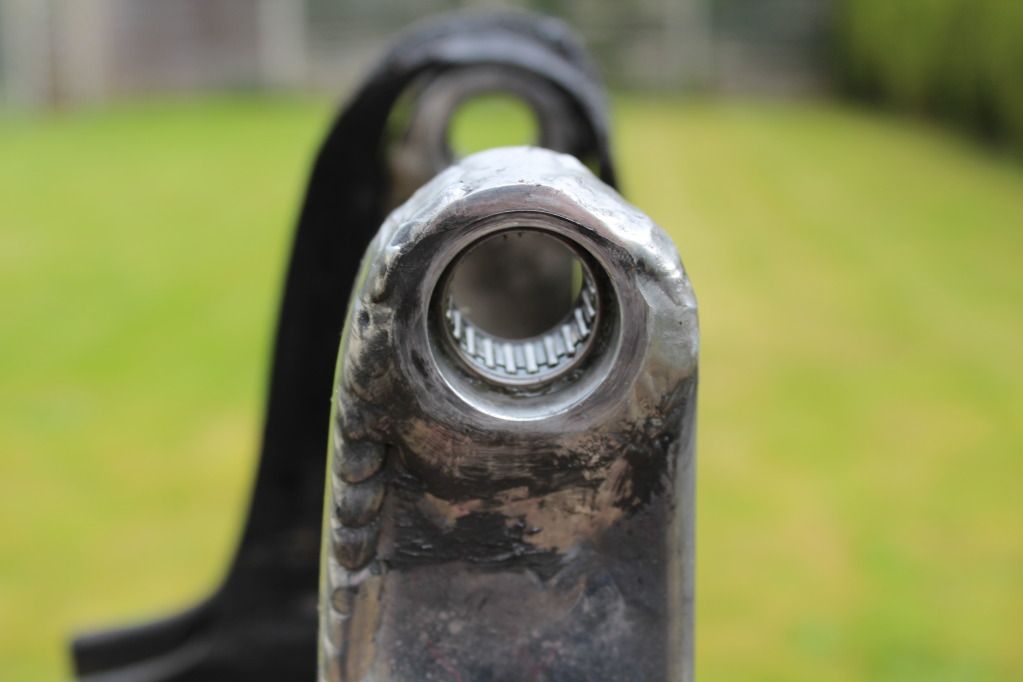

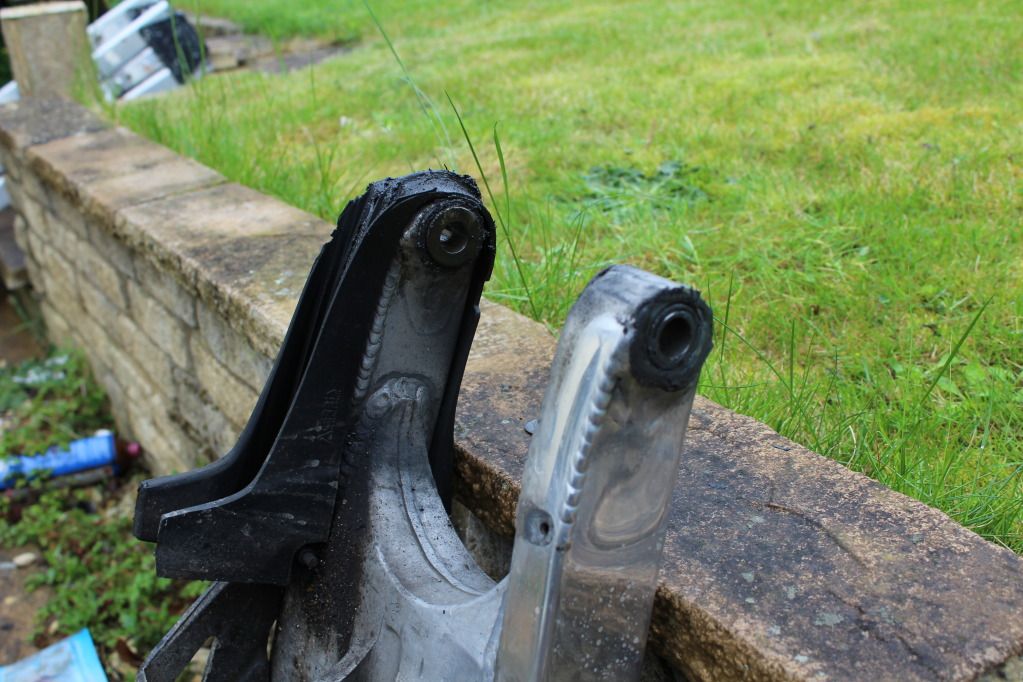

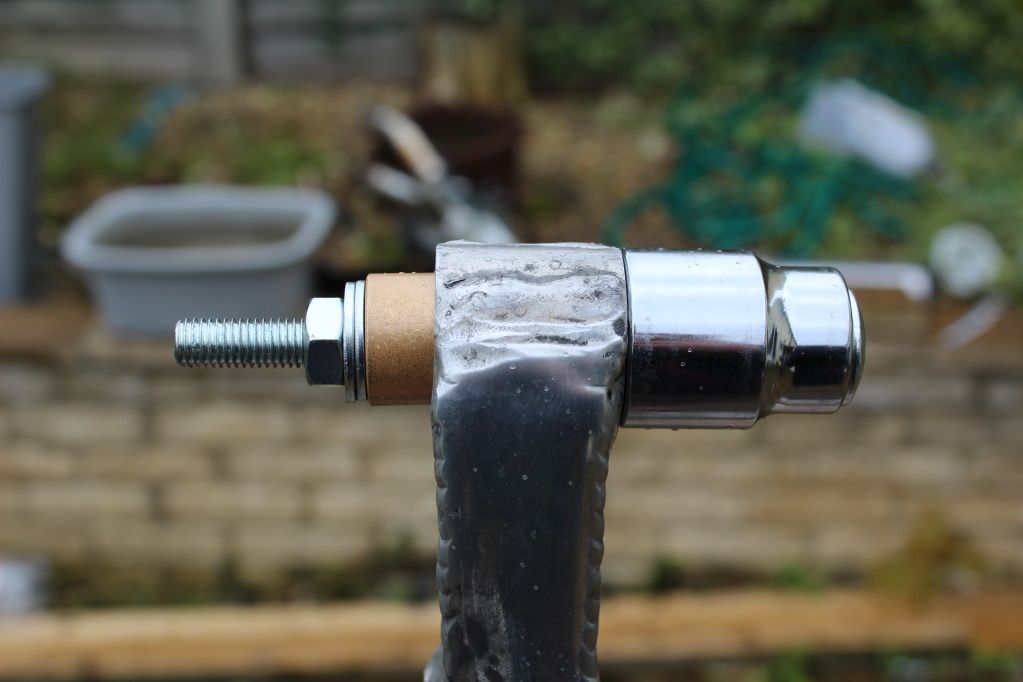

As promised pictures to go with Rob's write up. Thanks to Rob for the hints, and also to Lazybones for the design of the bearing removal tool - it was like shelling peas. First I left the Oilite bushes in the freezer until I had time to do the job ![]() How it looked before ![]() Old Bearing ![]() Standard Journals and O Rings ![]() Bearing Removal tool ![]() Just apply a spanner and out it comes ![]() Bearing Gone ![]() Use the same tool to put the bushes in ![]() Bushes in place ![]() Job done ![]() |
CCM 644 DS All the usual Mods
| |
![]() |
|
| Rob 110 | May 7 2012, 12:46 PM Post #10 |
|
God
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]()
|
B) the old bushwhacker tool makes it simples, good for 4x4 bushes too ;) they better last now i recommended Oilites :D PS my R30 went straight thru MOT 2 weeks ago with em :) |
|
CLICK HERE TO DONATE TO THE FORUM DIRTY R30 644 '03 TPS done, gubbins gone, GSXR can, 150 main, 27.5 pilot, needle 2nd position, K&N no lid FILTHY 404DS '04: 152 main, 70 pilot air jet, 38 pilot, emm needle 4th clip, Quill T3. Sold :( HUSKY FE501 missile
| |
![]() |
|
| madasabicycle | May 7 2012, 01:23 PM Post #11 |
|
Baron
![]() ![]() ![]() ![]() ![]()
|
Off for a test ride now - so if you never hear from me again it's all Rob's Fault!!!!
|
CCM 644 DS All the usual Mods
| |
![]() |
|
| Rob 110 | May 7 2012, 06:45 PM Post #12 |
|
God
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]()
|
Rob who? never heard of him ;) |
|
CLICK HERE TO DONATE TO THE FORUM DIRTY R30 644 '03 TPS done, gubbins gone, GSXR can, 150 main, 27.5 pilot, needle 2nd position, K&N no lid FILTHY 404DS '04: 152 main, 70 pilot air jet, 38 pilot, emm needle 4th clip, Quill T3. Sold :( HUSKY FE501 missile
| |
![]() |
|
| Monty | May 13 2012, 02:14 PM Post #13 |
![]()
Charlie Big Banana's
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]()
|
Just ordered mine, as bike having major overhaul, and noticed a fair bit of play in the rear end £17.35 from simply bearings. Not sure where my mate looked for his after givinfg him the part numbers, quoted £18 each, recon he looked on the haines site Yep just looked and £18 each for the long ones |
|
If it aint sharp I can play with it My Utube Channel, lots of bike vids here. Subscribe if you likehttp://www.youtube.com/user/choppermark?feature=watch
| |
![]() |
|
| Monty | May 15 2012, 04:41 PM Post #14 |
![]()
Charlie Big Banana's
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]()
|
Just fitted mine, but the top hat wont go in, so will have to run a reamer through, 0.25mm too small. |
|
If it aint sharp I can play with it My Utube Channel, lots of bike vids here. Subscribe if you likehttp://www.youtube.com/user/choppermark?feature=watch
| |
![]() |
|
| Rob 110 | May 16 2012, 10:06 AM Post #15 |
|
God
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]()
|
0.25mm is quite alot not doubting your engineering skills Monty, but has the journal got a burr on it, or corrosion making it tad bigger? |
|
CLICK HERE TO DONATE TO THE FORUM DIRTY R30 644 '03 TPS done, gubbins gone, GSXR can, 150 main, 27.5 pilot, needle 2nd position, K&N no lid FILTHY 404DS '04: 152 main, 70 pilot air jet, 38 pilot, emm needle 4th clip, Quill T3. Sold :( HUSKY FE501 missile
| |
![]() |
|
| Monty | May 16 2012, 10:59 AM Post #16 |
![]()
Charlie Big Banana's
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]()
|
They were tight being pressed in so will compress, ran a hand reamer through last night and the top hats push in nice now. Dont forget this is a CCM and everything is different from bike to bike Plus its a 02 tractor, so may be different tolerences from the suzy, Tried the tophats and bushes before being fitted and all fine, so just a small bit of compression Anyway all done now, will refit later. |
|
If it aint sharp I can play with it My Utube Channel, lots of bike vids here. Subscribe if you likehttp://www.youtube.com/user/choppermark?feature=watch
| |
![]() |
|
| Rob 110 | May 16 2012, 01:07 PM Post #17 |
|
God
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]()
|
thats quite alot of compression on the oilite bushes, did you squeeze all the oil out? :D |
|
CLICK HERE TO DONATE TO THE FORUM DIRTY R30 644 '03 TPS done, gubbins gone, GSXR can, 150 main, 27.5 pilot, needle 2nd position, K&N no lid FILTHY 404DS '04: 152 main, 70 pilot air jet, 38 pilot, emm needle 4th clip, Quill T3. Sold :( HUSKY FE501 missile
| |
![]() |
|
| Monty | May 16 2012, 01:28 PM Post #18 |
![]()
Charlie Big Banana's
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]()
|
Yep, just like getting blood out of a stone :D Swinger must have grown whilst out, would not fit back between the frame, had to file a small shamfer and beat with a big stick(read hyde hammer) Still got new chain and slipper guides, all nicely polished, shame to take it puddle hunting on saturday |
|
If it aint sharp I can play with it My Utube Channel, lots of bike vids here. Subscribe if you likehttp://www.youtube.com/user/choppermark?feature=watch
| |
![]() |
|
| Cuz | Jul 3 2012, 07:15 PM Post #19 |
|
God
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]()
|
Nice one lads,I'll be doing this myself and your not the only one Monty,I always find it hard work refitting the swinger and when it finally drops in I haven't a clue how it did it...bit like taking the engine in and out, though I've mastered that black art at last...so hopefully one day I might see what the swingers up to when it decides to play ball
|
| |
![]() |
|
| bighit | Jul 16 2012, 05:50 PM Post #20 |
|
outta here
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]()
|
any one know the number of the standard needle rollers ? i have acquired a load and not sure if they are the same as the standard ones. hk2030 is the number on the bearing and the other packet is hk2020 . they may even be wheel bearings for all i know lol |
![]() |
|
